H orizontal Directional Drilling (HDD) has revolutionized trenchless infrastructure construction, enabling underground utility installation with minimal surface disruption. However, drilling through rock formations remains one of the most technically demanding challenges in HDD operations. That’s where HDD rock tooling comes in — designed to conquer tough geologies with precision, speed, and durability.
In this guide, we’ll break down the most effective HDD tooling options for rock, how to choose the right tools based on formation type, and what KS Bit has to offer to maximize performance.
What Is HDD Rock Drilling?
Horizontal Directional Drilling involves steering a drill along a planned underground path, typically for installing pipelines, fiber optics, or utility conduits. While HDD is ideal for softer soils, rock formations like granite, limestone, or shale present unique challenges that require specialized tools.
That’s where rock drilling tooling — including PDC bits, tricone bits, and hole openers — plays a critical role.
Types Of HDD Rock Tooling And Their Functions

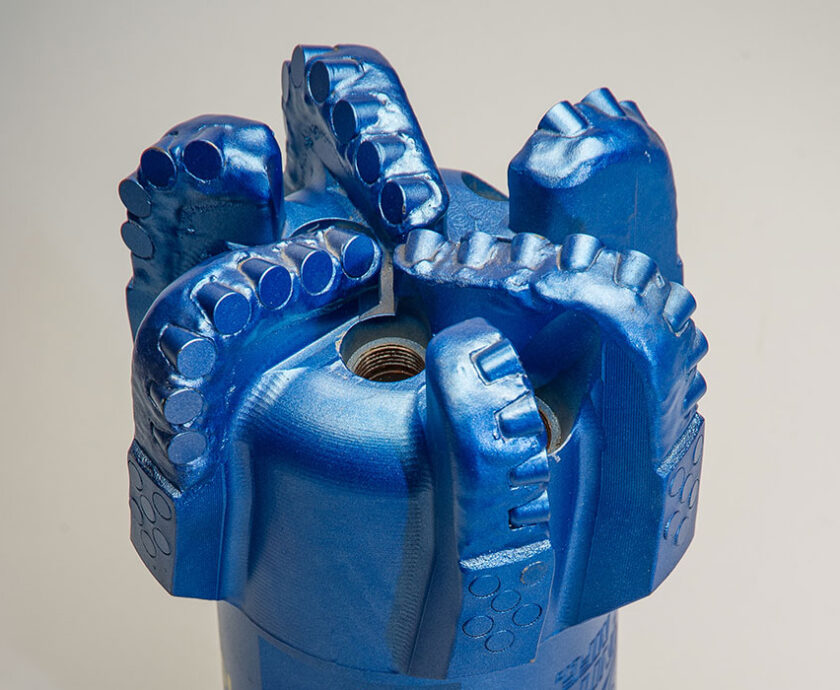

- PDC HDD Drill Bits
- Ideal For: Medium to hard consolidated rock (e.g., shale, limestone)
- Features: Polycrystalline Diamond Compact (PDC) cutters, matrix or steel body, high ROP
- Advantages: Long lifespan, minimal wear, consistent cutting, steerable

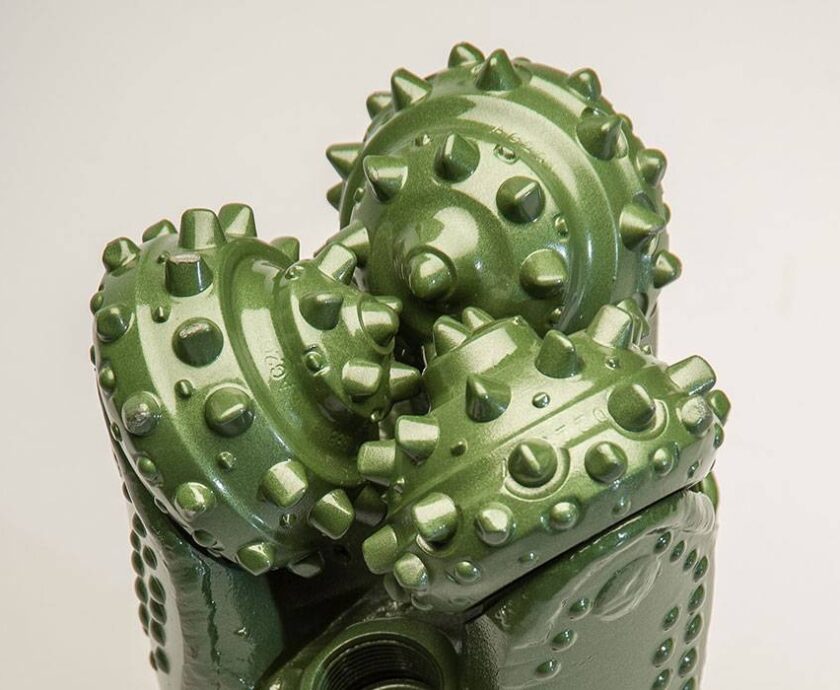

- Tricone Rock Bits
- Ideal For: Intermittent rock layers or unpredictable formations
- Features: Rotating cones with milled teeth or tungsten carbide inserts
- Advantages: Proven technology, versatile, ideal for mixed formations
- HDD Hole Openers
- Ideal For: Enlarging boreholes after pilot drilling
- Features: Multiple cones or cutter arms, can include TCI or PDC segments
- Advantages: High torque capacity, modular design, customizable diameters
- Reamers with Rock Cutters
- Ideal For: Hard or abrasive formations where traditional hole openers wear out
- Options: PDC reamers, fly cutters, split bit hole openers
- Advantages: Extended tool life, stable performance, optimized for HDD rigs
- Rock Pilot Bits
- Ideal For: Steering through formations during pilot hole stage
- Features: Often integrated with guidance systems or mud motors
- Advantages: Accurate steering, good penetration rate, built to handle torque
How To Choose The Right HDD Tooling For Rock Formations
Step 1: Understand the Formation
- Soft Rock: Sandstone, shale → Use PDC bits or hybrid cutters
- Medium Rock: Limestone, caliche → Use TCI tricone bits or reinforced reamers
- Hard Rock: Granite, basalt → PDC cutters with enhanced matrix, sealed bearing tricone bits
Step 2: Match Tool Type with Drilling Stage
Stage | Tool Type |
Pilot Hole | PDC Pilot Bit / Tricone Rock Bit |
Pre-reaming | PDC Hole Opener / TCI Reamer |
Final Reaming | Large Diameter Rock Reamer / Split Bit |
Step 3: Consider Equipment Specs
- Rig torque and pullback force
- Drilling fluid type and flow rate
- Steering mechanism (mud motor, RSS, etc.)
Comparison Table: PDC Vs. Tricone Vs. Hole Opener For HDD Rock Drilling
Feature | PDC Bit | Tricone Bit | HDD Hole Opener |
ROP (Rate of Penetration) | High | Medium | Low (in reaming stage) |
Steering Capability | Excellent | Moderate | Low (non-steerable) |
Formation Hardness | Medium–Hard | Soft–Hard | Depends on design |
Tool Life | Long | Medium | Long (if maintained) |
Cost Efficiency | High (in long runs) | Moderate | High (reuse potential) |
Comparison Table: PDC Vs. Tricone Vs. Hole Opener For HDD Rock Drilling
- What is the best drill bit for HDD in hard rock?
A matrix-body PDC bit with aggressive cutters is often best for hard rock HDD. For extreme conditions, hybrid bits with tricone elements may improve durability.
- Can you use tricone bits in horizontal directional drilling?
Yes, sealed-bearing tricone bits with TCI inserts are widely used in HDD for mixed or intermittent formations.
- What’s the difference between reamers and hole openers in HDD?
While sometimes used interchangeably, reamers often refer to more refined tools for diameter control and finishing, whereas hole openers are robust tools used to quickly enlarge the borehole.
HDD Tooling Solutions From KS Bit
At KS Bit, we understand the complexity of HDD in rock conditions. That’s why we offer a comprehensive suite of rock tooling solutions designed for both performance and longevity:
Our HDD Rock Tooling Lineup
- PDC HDD Bits – Matrix and steel body, custom geometries
- PDC HDD Reamers – Steel Body, custom geometries

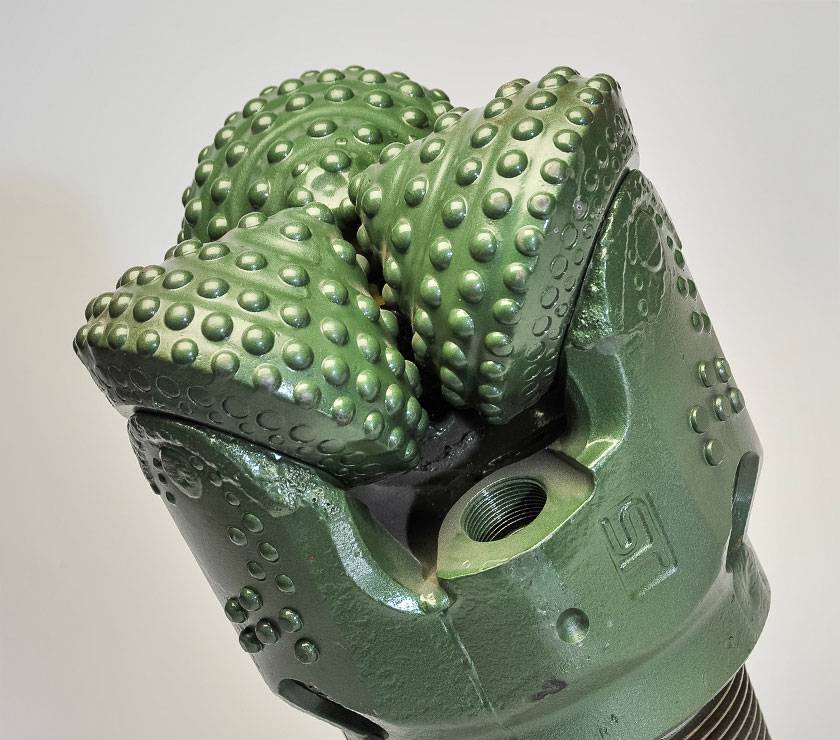

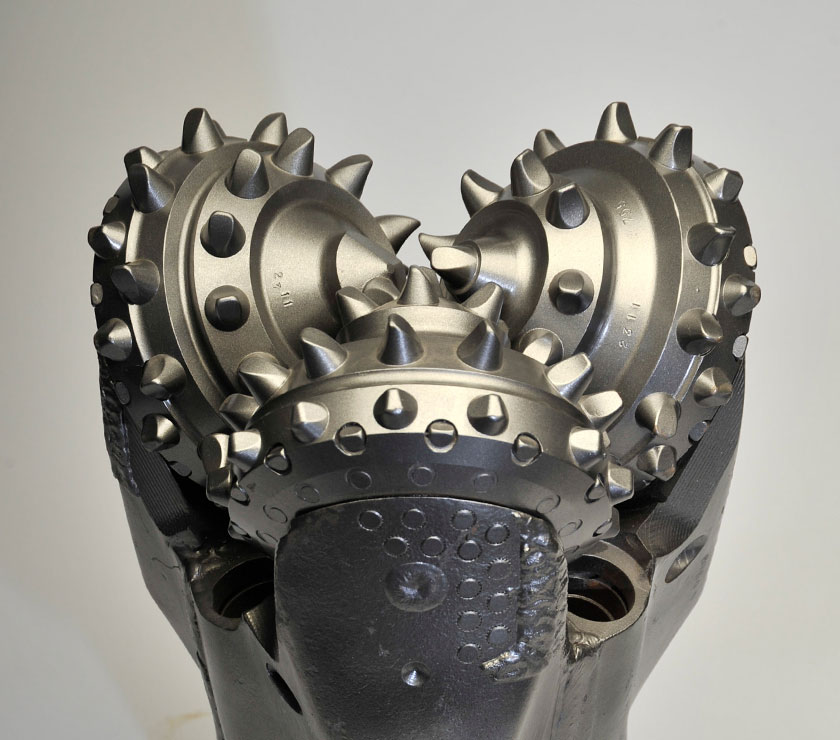

- TCI Tricone Bits – Available in 3″ to 26″, sealed bearing designs
- Rock Bit Hole Openers – Built to Specification
- Reamers & Expanders – PDC, Fly Cutter, and Barrel styles
- Custom Rock Cutters – For hybrid applications and directional drilling
HDD Tooling Solutions From KS Bit
- Use the Right Mud Formula: Proper fluid viscosity reduces vibration and cools cutters
- Avoid Over-Torquing: Excess torque shortens bearing and cutter life
- Monitor Bit Wear: Inspect regularly to avoid catastrophic failures
- Match RPM & WOB: Correct bit speed and weight-on-bit extend tool longevity
- Keep Cutters Sharp: Use premium-grade PDC cutters and replace when worn
Choosing the right rock tooling for HDD can be the difference between a successful project and costly downtime. Whether it’s PDC bits for directional accuracy, tricone bits for versatility, or hole openers for clean reaming, the right tools matched with formation knowledge ensure efficiency and safety.
Our global service team is here to help you optimize tooling, reduce costs, and drill smarter.
